|Inclusion Degree||Fully Wrapped Winding Machine|
|Structure||Pallet Wrapping Machine|
|Film Frame Structure||Mechanical Stretch|
|Series||T Series - Pallet Wrapping Machine|
|Strapping Material||PP/Pet, Strip|
Product DescriptionProduct Description
1. Auto Key threading Strapping machine:1-1. Equipment shape (length*width *height): 5100mm*755mm*4700mm; (subject to the final drawing)1-2. The effective size of the arch (width*height): 2200mm*2700mm;
1-3. Power: 2.5KW
1-4. Applicable strapping straps: PET machine straps (16mm*0.6mm PET strapping straps for fully automatic machines);
1-5. Binding method: # and Parallel;
1-6. Heating method: electric direct heating;
1-7. Tightening method: secondary tightening, fixed length to control the tightening force;
1-8. Threading method: electric;
1-9. Movement mode of movement: electric type, frequency conversion speed regulation, effective movement stroke of movement 600mm; (non-complete machine movement, movement of movement alone, to maximize work efficiency and reduce mechanical failures)
1-10. Control mode: automatic and manual switching between each other at will, equipped with emergency stop safety control buttons;
1-11. Control interface: using button control, with manual, start, pause, emergency stop, pass and other functions;
1-12. Packing speed: 20-22 seconds/piece; (including the completion of the packing action of the whole machine)
1-13. It has its own fault detection function, and through the warning lights installed outside, it can prompt and alarm;
1-14. Top pressure: 2000kg
1-15. Pressure way:Hydraulic
1-16. Top pressure struture:2 pcs of pressing plates, balance pressure.2. Rotation table
2-1. Diameter: 2000mm (subject to the final drawing)
2-2. Effective width of roller: 1600mm (subject to the final drawing)
2-3. Power: 1.5kw
2-4. Load bearing: 3500kg
2-5. Conveying speed: 0-12m/min
2-6. Track moving speed: 0-10m/min
2-7. Track line height: 600mm

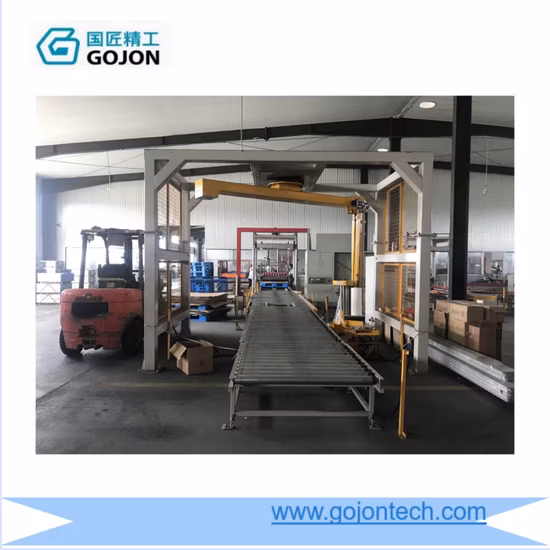

3. Automatic rocker arm wrapping machine
(1) Technical parameters
- Wrapping Specifications: MAX (2200mm×1800mm×2400) mm
- Production capacity: 20-30 pallets/hour
- Cantilever speed: 0-18rpm
- Power: 2.5kw
- Machine weight: 1500kg
- Air pressure: 0.6-0.8Mpa
a) Swivel arm parts
- Consists of swing arm and rocker arm
- Rectangular tube made of high-quality steel sheet
- The main frame and the surface of the rotating arm are sprayed
- The rotation of the arm is connected by a slewing support, which is stable and reliable
- Arm speed: 0-18rpm, the speed is adjustable by frequency conversion, and the arm can be accurately positioned
- Arm with electromagnetic brake
- Power of rotary arm reducer: 1.5kw
- The lifting and lowering of the membrane frame adopts chain drive, and the chain adopts 08B standard roller chain
- Lifting speed: 0-56mm/s, the lifting speed is adjustable by frequency conversion
- Lifting reducer (turbine reducer) Power: 0.55kw
- The rotating arm is equipped with a travel switch to control the up and down travel of the mold base
- Made of high-quality steel
- Pickling, phosphating and spraying after production
- Pre-stretching film frame: the stretching ratio is 1:2.5, the film is automatically fed, and the feeding speed is adjustable
- The film is easy to come out, just pull it, and the film frame will automatically stop running. Film feeding motor 0.37KW
- The proximity switch controls the film to send out, which is sensitive and reliable.
- The speed of the film feeding motor is adjustable, and the photoelectric switch is installed on the film frame to automatically detect the height of the goods.
- Made of high-quality rectangular tubes and steel plates Pickling, phosphating, and plastic spraying after production
- Using air cylinder to control the film and the film, the transformer and the electric heating wire are used to realize the film breaking.
- Compressed air: 0.6-0.8Mpa
- Quality: Oil-free and water-free air.
- PLC programmable control, the number of winding layers and times can be adjusted, and the height of the goods can be automatically sensed.
- The number of winding turns on the top and bottom layers can be set randomly and freely.
- The rotation of the arm and the lifting of the membrane frame can be adjusted by frequency conversion, which is easy to operate.
- It is easy to control the packaging effect.
- Cargo start and stop are controlled by photoelectric switch.
- Pneumatic control system adopts solenoid valve, pressure reducing valve control
- Equipped with oil-water separator
4. Roller conveyor line 2pcs
3-1. Length of conveyor line: 1800mm
3-2. Conveyor line width: 1700mm
3-3. Effective width of drum: 1600mm
3-4.Conveyor line height: 600mm
