500t Professional Production Mine Roof Has Good Molding Effect Four Columns Oil Hydraulic Press/Pressing Machine

Basic Info.

Model NO.	yq32
Warranty	12 Months
Workmanship	Forging
Colour	Customized
Raw Material	Steel
Structure	Three Beams and Four Columns
Transport Package	Customized
Specification	3600T
Trademark	wodda
Origin	Shandong

Product Description

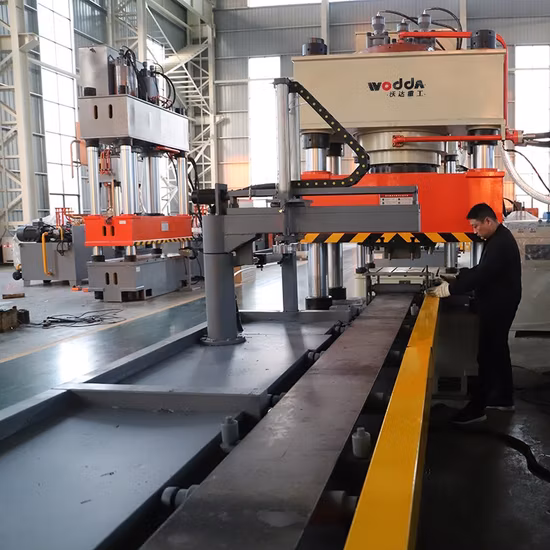

Hydraulic press for mining roof production
Characteristic:
1. With PLC controlling + touching screen.
2. With excellent quality hydraulic station, good pumps, good water cooling system.good hydraulic oil filtering system, good motors-shandong huali motor.
3. Strong frames, with several ram guiding.
4. Available working pressure, speed and stroke settings.
5.The filling tank is placed in the middle for higher safety factor Application field: This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products.
Product main technical specifications:

Project	315t-C	500t-B	630t-B	800t
Maximum liquid pressure (Mpa)	25	25	25	25
Slider stroke (mm)	800	600	900	900
Maximum opening height (mm)	1250	1000	1500	1500
Table size (mm)	1260X1160	1500X1500	1600X1600	1500*1500
Down speed of empty range (mm / S)	100	120	120	120
Working speed (mm / S)	6-15	6-15	5-12	6--15
Return speed (mm / S)	80	80	90	90
Motor power( kw)	22	18.5*2	22*2	37*2
Oil pump displacement (ml / R)	80	63*2	63*2	160*2
Jacking force (t)	63	100	100	125
Ejection stroke (mm)	250	300	300	350

The company has a complete and scientific quality management system, ISO9001, CE certification, Madrid certification, and has successfully applied for more than ten national patents, many papers have been the world engineering and applied science field of the famous information company American Engineering Information Company included in the EI database.

About us Shandong Woda heavy machinery Co., LTD is located in Tengzhou City, Shandong Province, China. We specialized inmanufacturing & exporting machine tools for many years.And its products are exported to many countries. Now it has more than 120 employees, including More than ten senior engineers. It has successfully applied for more than ten national patents, and many papers have been included in the United States Engineering Information Corporation
Q:How about your machine quality?
We are worry about the quality.A:Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q:How to select your machine?
A: You can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
